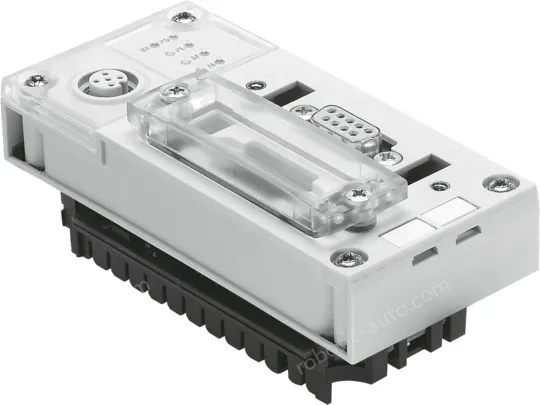

Protocol
Profibus DP
Dimensions (W x L x H)
(incl. interlinking block)
50 x 107 x 50 mm
Product weight
115 g
Ambient temperature
-5 °C ... 50 °C
Storage temperature
-20 °C ... 70 °C
Degree of protection
IP65
IP67
Corrosion resistance class CRC
1 - Low corrosion stress
LABS (PWIS) conformity
VDMA24364-B2-L
Material housing
PA-reinforced
PC
LED display, product-specific
M: Modify, parameterisation
PL: Load supply
PS: Electronics supply, sensor supply
SF: System fault
LED display, bus-specific
BF: Bus fault
Device-specific diagnostics
Channel-oriented and module-oriented diagnostics
Undervoltage of modules
Diagnostic memory
Operator controls
DIL switch
Field bus interface
2x M12x1, 5-pin, B-coded
Sub-D socket, 9-pin
Sub-D plug connector, for self-assembly
Max. address volume, inputs
64 Byte
Max. address volume, outputs
64 Byte
Parameterisation
Diagnostic behaviour
Fail-safe response
Forcing of channels
Signal setup
System parameter
Baud rate
96 ... 12000 kbit/s
Configuration support
GSD file
Additional functions
Acyclic data access via "DPV1"
Channel-oriented diagnostics via fieldbus
Start-up parameterisation in plain text via fieldbus
System status can be mapped using process data
Additional diagnostic interface for operator units
Operational voltage range DC
18 V ... 30 V
Nominal operating voltage DC
24 V
Intern power consumption nominal operating voltage
Typ. 200 mA
Types of communication
DPV0: Cyclic communication
DPV1: Acyclic communication
